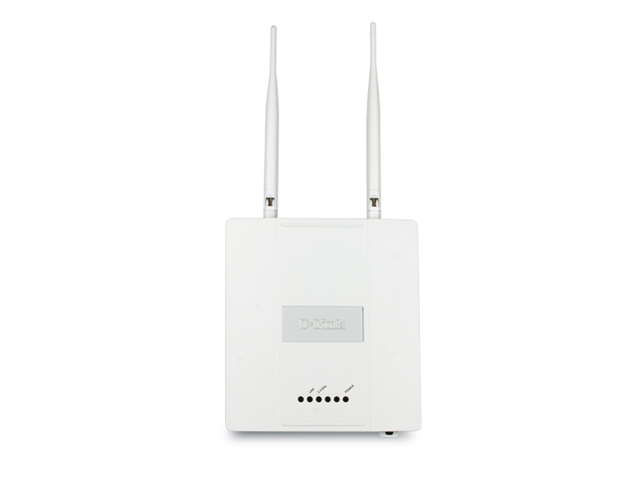

DAP-2360 | ActForNet

MPN: DAP-2360
Category: Networking >> Wireless Networking
Vendor: D-Link
Weight: 3.2 LB(S)
Price: US$ 139.72

-
+
The DAP-2360 is an 802.11n Plenum Rated PoE Access Point ideal for any network administrator to create or expand the capacity of their wireless network. At transfer rates of up to 300Mbps in 2.4GHz users are able to connect with legacy 802.11b/g adaptors as well as the latest 802.11n adaptors to enjoy faster downloads and instant communication.


Versatile Access Point

The DAP-2360 allows network administrators to deploy a highly manageable and extremely robust 802.11n wireless network. The included antennas are detachable and provide optimal wireless coverage in the 2.4GHz (802.11g and 802.11n) band using a high power single radio design to reduce dead spots and increase capacity. Enclosed in a white plenum-rated metal chassis, the DAP-2360 color allows the access point to easily blend into ceilings or walls and adheres to strict fire codes for placement in air passageways. For advanced installations, this high-speed Access Point has integrated 802.3af Power over Ethernet (PoE) support, allowing installation of this device inareas where power outlets are not readily available.



Enhanced Performance

The DAP-2360 delivers reliable wireless performance with maximum wireless signal rates of up to 300Mbps2 in the 2.4GHz wireless band. This, coupled with support for Wi-Fi Multimedia??? (WMM) Quality of Service features, makes it an ideal access point for audio, video, and voice applications. Additionally, the DAP-2360 supports load balancing features to ensure maximum performance by limiting the maximum number of users per Access Point.

Standards
IEEE 802.11n
IEEE 802.11g
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3u
IEEE 802.3

Network Management
Telnet - Secure (SSH) Telnet
Web Browser interface
HTTP - Secure HTTP (HTTPS)
SNMP Support
D-View Module - Private MIB
AP Manager II
AP Array

Security
WPA-Personal
WPA-Enterprise
WPA2-Personal
WPA2-Enterprise
64/128-bit WEP
SSID Broadcast Disable
MAC Address Access Control
Rogue AP Detection

VLAN/SSID Support
802.1q/Multiple SSID support up to 8

Quality of Service (QoS)
4 Priority Queues
WMM Wireless Priority

Wireless Frequency Range
2.4GHz to 2.4835GHz

Operating Modes
Access Point (AP)
WDS with AP
WDS/Bridge (No AP Broadcast)
Wireless Client

Dipole Antenna Gain
5 dBi at 2.4 GHz

Maximum Transmit Output Power
26 dBm at 2.4 GHz Dual Chain

LEDs
Power
LAN
2.4GHz

Maximum Power Consumption
9 Watts with PoE
8 Watts without PoE

Operating Voltage
48VDC +/- 10% for PoE or 5V/2.5A

Certifications
FCC class B
IC
UL 2043
WiFi

Item Dimension (L"xW"xH"):
10.71 x 8.03 x 4.49

Weight:
3.32 lb

Warranty Information
Limited Lifetime
