ERP Hardware Platform Solution



Requirement of an ERP hardware platform

Highly powerful in processing capabilities

The ERP application does a lot of data process and analysis in real time. With the growing new features and end users added, how to meet the ever growing requirement for processing capability is a big callelenge for an ERP hardware patform.

Hugh storage space

The core of the ERP appication is data processing. Historic data is also stored for data mining and disater recovery. So it requires large amount of storage space to store the data collected and processed.

High speed network connectivity

High availability and disaster recovery

The workflow of a modern entterprise in manufacture and retail industry is highly coupled with ERP application. The failure of the EPR application means losses in both finance and reputation. Somtimes it can be fatal. So proving high availability and disaster recovery capability is mandatory for an ERP hardware platform.



Components of te sample ERP platform

Based on the requirements we listed abover, we customized an ERP platform solution taking advantage of Huawei blade server and OceanStor enterprise storage systems. We have deployed this solution in a number of customers and have got very postitive feedback.

The solution has two basic components. Huawei E9000 blade serrver is the computation powerrhouse. OceanStor 5500 is the centralized storage systems used for data repository and backup functionality.

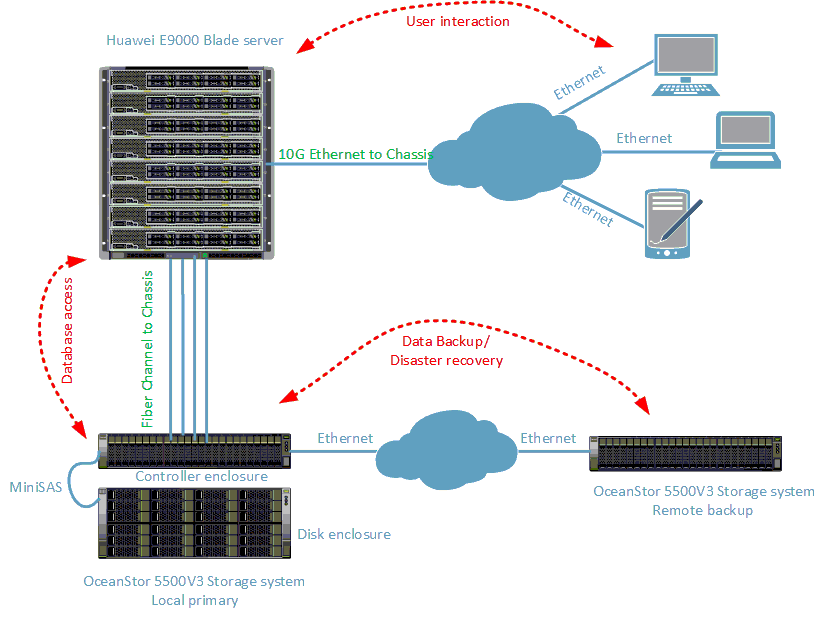

Huawei ERP solution diagram for SMB

E9000 Blade Server

Highlights

E9000 Converged Infrastructure Blade Server Chassis provides 16 slots in a 12U chassis that includes redundant Power Supply Units (PSUs), heat-dissipation modules, management modules, and switch modules. This converged infrastructure platform features an optimized layout to make best use of the available space.

The Huawei E9000 chassis can be installed in a standard 19-inch rack at a depth of at least 1m. The chassis is available with AC or DC power setups to suit data center requirements.

Extensive scalability allows E9000 servers to support a variety of services with 48 DIMMs and 15 x 2.5-inch hard disks in a full-width slot along with 2- and 4-socket compute nodes and support for I/O acceleration using GPUs, PCIe SSDs, and GPUs for General-Purpose computing (GPGPUs)

Switch module choices enable the E9000 to handle a variety of services, with modules including GE, 10 GE, 40 GE, FC, FCoE, and InfiniBand FDR with support for evolution to 100 GE and InfiniBand EDR

Dynamic power-management functions and Platinum AC PSUs with higher than 95% power conversion efficiency minimize power consumption and heat dissipation

A passive midplane helps prevent single-point failures, while support for fully redundant function modules enables seamless switchovers

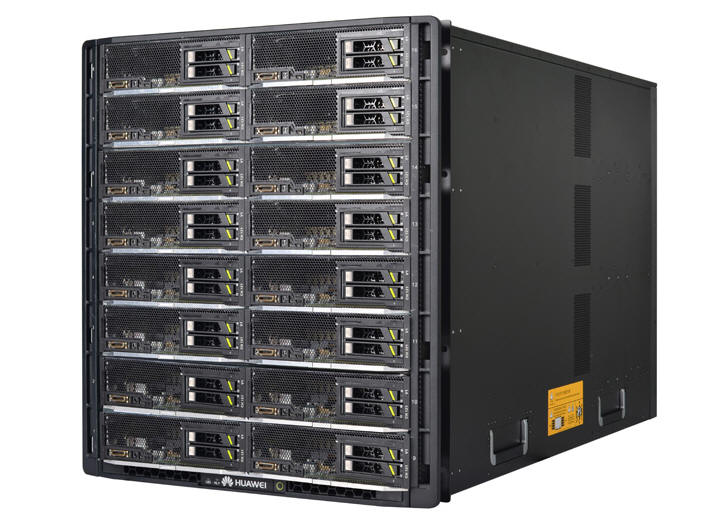

Front view of E9000 server

Huawei E9000 Front view

Back view of the E9000

E9000 backview

Video on Huawei E9000 blade server



OceanStor 5500 V3 Storage System

Highlights

Offer a cloud architecture-oriented operating system, high-performance hardware platform, and a complete suite of smart management software.

Achieve high performance at a latency lower than 1 ms when configured with all SSDs.

Scalable to eight controllers, 1 TB cache, 7.5 PB storage capacity, with a variety of interfaces, including 16 Gbit/s FC, 56 Gbit/s InfiniBand, PCIe 3.0, 12 Gbit/s SAS, and smart I/O cards.

Perfect storage systems for large OLTP/OLAP databases, file sharing, and cloud computing in the government, finance, telecom, energy, and media industries.

Enable convergence in five areas: SAN and NAS, heterogeneous devices, entry-level to high-end storage, HDD and SSD, and storage and backup

Provide industry-leading specifications: Up to 8 controllers, 1 TB cache, 7.5 PB storage capacity, and various interface types, including 16 Gbit/s FC, 56 Gbit/s InfiniBand, PCIe 3.0, 12 Gbit/s SAS, and Smart I/O card

Simplest management platform handles multiple product models with a graphical interface and is available in Windows, iOS, and Android versions

Protect customer initial investment and reduce TCO for multiple applications, various product models, and fast business growth

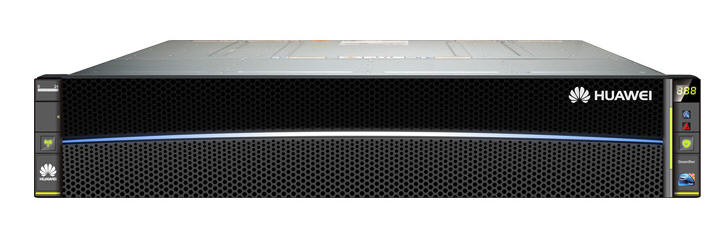

5500 V3 front view

5500V3 front view

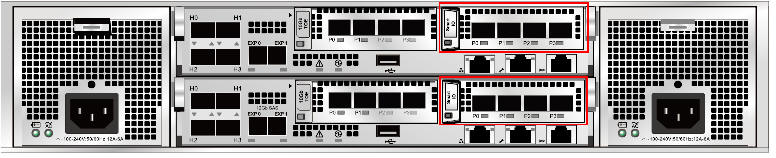

5500V3 back view

OceanStor 5500v3 back view

Video on Huawei OceanStor storage systems



Equipment list for the sample solution

Quote on Huawei E9000 blade server

Quote on Huawei OceanStor 5500 V3 Storage server

Contact us:Tel: 1-866-318-6636 (US/CANADA) Email: [email protected]

No. Part Number Model Description Unit Qty. Qty.
  OceanStor 5500 V3 Secondary_Site1
1 OceanStor 5500 V3   1
1.1 OceanStor 5500 V3 Main Equipment
1.1.1 Dual-Controller Unit 1
  Controller Enclosure
  02350HWT 55V3-48G-AC3-10 5500 V3(2U,Dual Ctrl,AC,48GB,SmartIO,8*10Gb ETH,12*3.5",SPE33C0212) 1 1
Disk Components
  02350BVT NLSAS4T-7.2K-01 4000GB 7.2K RPM NL SAS Disk Unit(3.5") 12 12
1.2 Installation Material
  14130321 SS-OP-D-LC-M-3 Patchcord,DLC/PC,DLC/PC,Multi-mode,3m,A1b,2mm 8 8
1.3 System Software
1.3.1 Basic Software License for Block(Include Device Management,SmartThin,SmartMulti-tenant,SmartMigration,SmartErase,SmartMotion,Cloud Service)
  88032QRA LIC-5500V3-BS Basic Software License for Block(Include Device Management,SmartThin,SmartMulti-tenant,SmartMigration,SmartErase,SmartMotion,Cloud Service) 1 1
1.3.2 HyperReplication License
  88032QRM LIC-5500V3-REP HyperReplication License 1 1
1.3.3 OceanStor HW UltraPath Software License
  88032QRN LIC-5500V3-PATH OceanStor HW UltraPath Software License 1 1
  02350HQP STOSRDFORBCDK OceanStor ReplicationDirector Software Base Edition 1 1

  OceanStor 5500 V3 Primary_Site1
2 OceanStor 5500 V3   1
2.1 OceanStor 5500 V3 Main Equipment
2.1.1 Dual-Controller Unit 1
  Controller Enclosure
  02350HXC 55V3-48G-AC2-8 5500 V3(2U,Dual Ctrl,AC,48GB,SmartIO,8*8Gb FC,25*2.5",SPE33C0225) 1 1
  Expanding Interface Module
  03056794 SMARTIO10ETH 4 port SmartIO I/O module(SFP+,10Gb Eth/FCoE(VN2VF)/Scale-out) 2 2
  Disk Components
  02350CDU SAS1200-10K-2-1 1200GB 10K  RPM 4KN SAS Disk Unit(2.5") 54 54
  02350CBH EMLC600-2-01 600GB HSSD eMLC SAS Disk Unit(2.5") 4 4
  Disk Enclosure
  02359806 DAE22525U2-1-AC Disk Enclosure(2U,AC,2.5",Expanding Module,25 Disk Slots,without Disk Unit,DAE22525U2) 2 2
2.2 Installation Material
  14130321 SS-OP-D-LC-M-3 Patchcord,DLC/PC,DLC/PC,Multi-mode,3m,A1b,2mm 16 16
  04050699 HS-SAS-5-01 High Speed Cable,Mini SAS HD Cable,5m,(SFF 8644 Plug),(26AWG*4P*2B(S)),(SFF 8644 Plug),Indoor use 1 1
2.3 System Software
2.3.1 Basic Software License for Block(Include Device Management,SmartThin,SmartMulti-tenant,SmartMigration,SmartErase,SmartMotion,Cloud Service)
  88032QRA LIC-5500V3-BS Basic Software License for Block(Include Device Management,SmartThin,SmartMulti-tenant,SmartMigration,SmartErase,SmartMotion,Cloud Service) 1 1
2.3.2 HyperReplication License
  88032QRM LIC-5500V3-REP HyperReplication License 1 1
2.3.3 SmartTier License
  88032QRD LIC-5500V3-TIER SmartTier License 1 1
2.3.4 OceanStor HW UltraPath Software License
  88032QRN LIC-5500V3-PATH OceanStor HW UltraPath Software License 1 1
  02350HQP STOSRDFORBCDK OceanStor ReplicationDirector Software Base Edition 1 1

  CH121 V3_Site1
3 E9000   7
3.1 Blade Basic Configuration
3.1.1 Blade MotherBoard
  03056132 IT11SGCA05 Grantley EP Compute Node,CH121 V3 1 7
3.1.2 Haswell EP CPU
  41020498 EHSE52620 X86 series,FCLGA2011,2400MHz,1.8V,64bit,85000mW,Haswell EP Xeon E5-2620 v3,6Core,IT Product  Dedicated 2 14
3.1.3 DDR4 Memory
  06200176 N00DDR401 Memory Module,DDR4 RDIMM,16GB,288pin,0.9ns,2133000KHz,1.2V,ECC,2Rank(1G*4bit) 4 28
3.1.4 Hard Disk(include Front Panel)
  02310YCM N300S10W2 HardDisk-300GB-SAS-10000rpm-2.5"-16M-Hot-Swappable-Built-In-Front Panel 2 14
3.1.5 RAID Card and Other Accessories
  03021FTX BC0MESMCE600 RU120 SAS/SATA RAID Card,RAID0,1,10,1E,0 Cache(LSI2308) 1 7
3.1.6 Network Mezz Card
  03021SHM IT1DMXEA0000 MZ910,2*10GE,2*8G FC Port Mezzanine Card,PCIE 3.0 X8 1 7

  E9000 Chassis_Site1
4 E9000   1
4.1 Chassis Basic Configuration
  02301028 IT1K20E9000 12U high-powered integrative module with  Delivery Accessory 1 1
  03054675 IT1DSMMA0000 MM910,Shelf Management Module A 2 2
  03030QEJ IT0E01FAN000 OSCA Fan Box 14 14
  02310PTH IT1MP2KM 2000W platinum AC power supply unit 6 6
4.2 Switch Module
  03056858 IT11XCUA08 CX912,16*10GE Port,8*8G FC Port(4-Uplink Port Activate,Brocade),Multi-Plane Switch Module 2 2
  05330492 BC0LICENSE02 FCSwitch-Brocade-ISL Trunking License License 2 2
  05330493 BC0LICENSE01 FCSwitch-Brocade-Full Fabric License 2 2
4.3 Optical Transceiver & SFP+ Cable
4.3.1 Multi-Mode Optical Transceiver
  02311ASE SFP-8.5G-LC-MM Optical transceiver-SFP+-850nm-8.5Gbps--8dBm--1.3dBm--11.2dBm-LC-MM-0.15km 4 4
  02318169 OMXD30000 Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) 4 4
4.4 Cables and Optional Equipments
  21240817 EGUIDER05 4U Static Rail Kit 1 1





What is ERP

Enterprise resource planning (ERP) is a category of business-management software—typically a suite of integrated applications—that an organization can use to collect, store, manage and interpret data from many business activities, including:

product planning, cost
manufacturing or service delivery
marketing and sales
inventory management
shipping and payment

ERP provides an integrated view of core business processes, often in real-time, using common databases maintained by a database management system. ERP systems track business resources—cash, raw materials, production capacity—and the status of business commitments: orders, purchase orders, and payroll. The applications that make up the system share data across various departments (manufacturing, purchasing, sales, accounting, etc.) that provide the data. ERP facilitates information flow between all business functions, and manages connections to outside stakeholders.

Quote on Huawei E9000 blade server

Quote on Huawei OceanStor 5500 V3 Storage server

Contact us:Tel: 1-866-318-6636 (US/CANADA)

     Email: [email protected]
