VPC800 4K Ultra-HD Video Camera


To boost the quality of both video and audio conferencing, Huawei offers the VPC800 Ultra-HD PTZ video camera featuring video quality as high as 4K @ 60 frames per second (fps). Coupled with an extensive portfolio of Huawei videoconferencing systems, the camera delivers clear, crisp images for true-to-life conferencing.

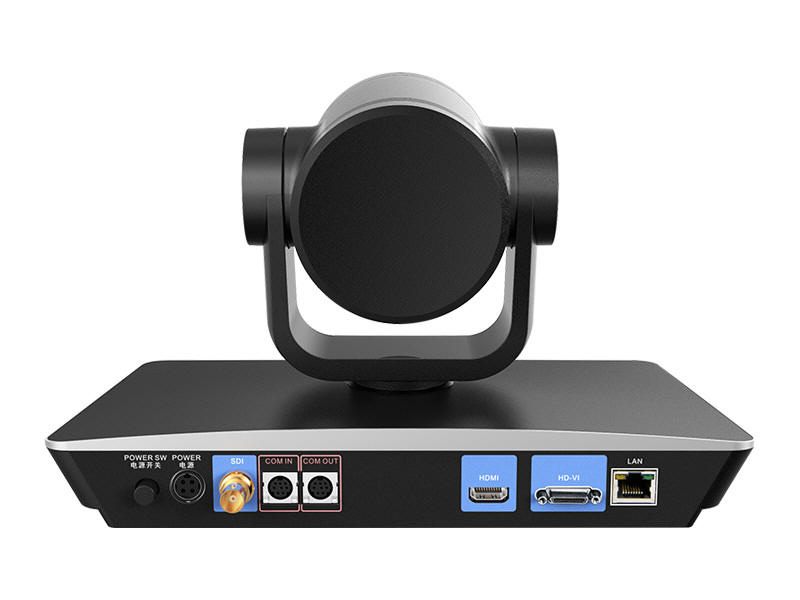

VPC800 4K Camera

Product Features

      • A 12.4-megapixel CMOS sensor delivers images up to 4K @ 60 fps. Huawei also incorporates industry-leading advances in motion-based 3D noise-reduction algorithms, using motion estimation to deliver sharper images with accurate colors.
      • Automatic White Balance (AWB), Auto Exposure (AE), and Auto Focus (AF). This automated capability simplifies use and ensures that the camera always delivers the best possible image quality.
      • As an alternative to HDMI, the camera provides a 3G-SDI port that allows video transmission over long distances to simplify system deployment.



Product Specification

Model

HUAWEI VPC800-4K

HUAWEI VPC800-1080P

Imaging

12.4 megapixels , 1/1.7-inch CMOS imaging chip

12.4 megapixels , 1/1.7-inch CMOS imaging chip

Video Output in Pixels

3,840 x 2,160 @ 50/59.94/60 fps;

3,840 x 2,160 @ 25/29.97/30 fps;

1080p @ 50/59.94/60 fps;

1080i @ 50/59.94/60 fps;

1080p @ 25/29.97/30 fps;

720p @ 50/59.94/60 fps

1080p @ 50/59.94/60 fps;

1080i @ 50/59.94/60 fps;

1080p @ 25/29.97/30 fps;

720p @ 50/59.94/60 fps

Zoom

12x optical zoom + 12x digital zoom

12x optical zoom + 12x digital zoom

Lens Aperture (F#)

F1.8

F1.8

Maximum Horizontal/Vertical Field of View

80º/50º

80º/50º

Pan/Tilt Range

+/-100º (pan), +/- 30º (tilt)

+/-100º (pan), +/- 30º (tilt)

Pan/Tilt Speed

Minimum pan and tilt: 2º/s; Maximum pan: 100º/s, 25º/s tilt

Minimum pan and tilt: 2º/s; Maximum pan: 100º/s, 25º/s tilt

Number of Presets

254

254

Inversion

Supports image inversion

Supports image inversion

Video Output

HD-VI, DVI-I (DVI-D & YPbPr)

3G-SDI (up to 1080p60 output) SMPTE-424M

HDMI 2.0 (up to 4K @ 60 fps output)

HD-VI, DVI-I (DVI-D & YPbPr)

3G-SDI (up to 1080p60 output) SMPTE-424M

HDMI 2.0 (up to 4K @ 60 fps output)
