TX50 HD Video Conferencing End Point

The Huawei TX50 brings state-of-the-art H.265 technology to HD video conferencing. The TX50 endpoint’s dual 1080p video and AAC-LD audio deliver face-to-face communication so lifelike, you will think you are all in the same room. Multi-view images are easily transmitted for a panoramic presentation. Built-in Wi-Fi reduces the need for cables and simplifies deployment, making the TX50 ideal for large and medium-sized conference rooms

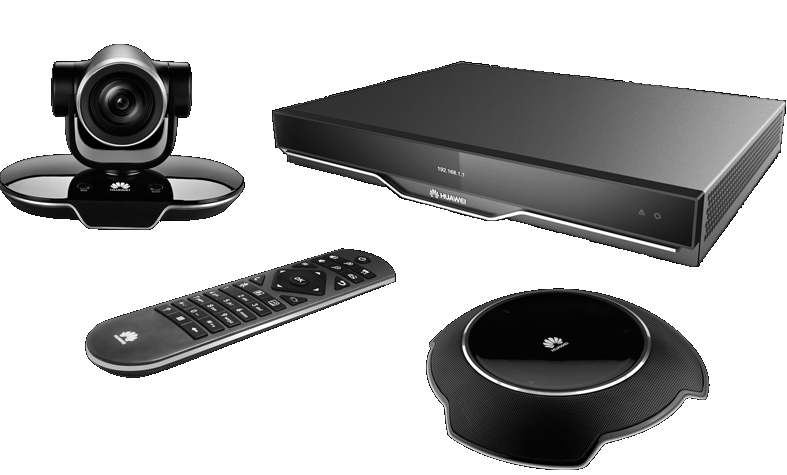

TX50 HA video conferencing endpoint

Product Features

  • Ultra-low bandwidth consumption: H.265 encoding and decoding, 1080p30 @ 384 kbit/s
  • Robust network adaptability: Huawei SEC3.0, tolerates 20% packet loss
  • SiteCall, Voice dialing, triple view, VGA bypass, Wi-Fi access, and Air content sharing
  • Compatibility with a variety of protocols enables interoperability with Unified Communications (UC) systems, IP
  • Multimedia Subsystems (IMSs), and other third-party systems



Product Specification

Standards and Protocols

ITU-T H.323, IETF SIP, ITU-T H.239, and BFCP

Video Standards and Protocols

H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, RTV, and H.265

Video Resolution of People (using different network bandwidths)

H265:

1080p60 from 768 Kbit/s (optional)

1080p30 from 384 Kbit/s

720p30 from 288 Kbit/s

H264 HP:

1080p60 from 1 Mbit/s (optional)

1080p30 from 512 Kbit/s

720p30 from 384 Kbit/s

Dual Stream

H.264: dual 1080p60 (optional), dual 1080p30

H.265: 1080p60 + 1080p30 (optional), dual 1080p30

Video Inputs

1 x HD-VI/DVI, 1 x CVBS, 1 x DVI-I (HDMI/VGA/YPbPr), 1 x Display Port (including audio input), 1 x HDMI (HDMI supports audio input), and 1 x 3G-SDI

Video Outputs

3 x HDMI, 1 x DVI-I (HDMI/VGA/YPbPr), 1 x 3G-SDI, and 1 x CVBS/S-Video (DVI-I converted to CVBS/S-Video)

Audio Inputs

2 x XLR, 2 x RCA, 1 x HD-AI serial MIC interface, 1 x HDMI, and 1 x Display Port

Audio Outputs

4 x RCA, 3 x HDMI, and 1 x DVI

Other Ports

IP: 10/100/1,000 Base-T, 2 x RJ45

Wireless: Wi-Fi

2 x RS232 COM ports, 2 x USB 2.0 host
