SwitchCenter Call Control and Firewall Traversal Server

Provides seamless video communication between networks using both H.323 and Session Initiation Protocol (SIP)  registrations as well as multiple traversal protocols. The latter include H.323-based H.460 and SIP-based Interactive Connectivity Establishment (ICE) and Session Traversal Utilities for Network Address Translator (STUN).

The SwitchCenter software  supports traversal between public and private networks.

Adapt to a variety of video communication requirements with the SwitchCenter.

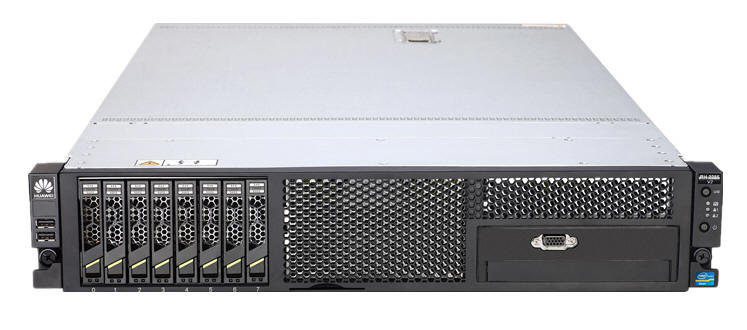

SMC 2.0 Video Conferencing Service Management System

Compare and Shop

Vendor Product Description Huawei Advantages
HUAWEI SC Separated SwitchCenter (includes 50 devices register and 25M traversal bandwidth)
POLYCOM ACCESS DIRECTOR Firewall Traversal Server(No GK and SIP Server function) Firewall Traversal Server(Included GK and SIP Server function)



Product Features

Product Characteristics



H.323/SIP dual-protocol access and gatekeeper/SIP server/SIP proxy support

H.323/SIP dual protocols empower networking capabilities regardless of specific protocols
Supports registration management and optional authentication of IP number or password
Supports a wide variety of call controls, such as number and URI dialing, DNS addressing, and number conversion
Flexible configuration of zone or subzone area bandwidth, flexible inter-zone bandwidth and routing control, and SIP trunk dialing support
Security management including blacklist and whitelist,H.235/TLS/SRTP authentication, and signaling and media interoperability

Powerful firewall traversal capabilities implement video communication and collaboration across differentiated networks

Supports standard H.460 and ICE traversal protocols and interoperability with mainstream videoconferencing endpoints for video communication across differentiated networks
Flexible deployment of single-point, point-to-point, or video firewall meets a variety of networking scenarios
Supports traversals up to 300 Mbit/s in a single device, minimizing infrastructure investment

Unified management for easy maintenance

Unified management of endpoint addresses; user online status
Unified management of software upgrades and alarms and real-time device status control through HUAWEI Service Management System 2.0v (SMC2.0), simplifying IT maintenance
Support for CDR output

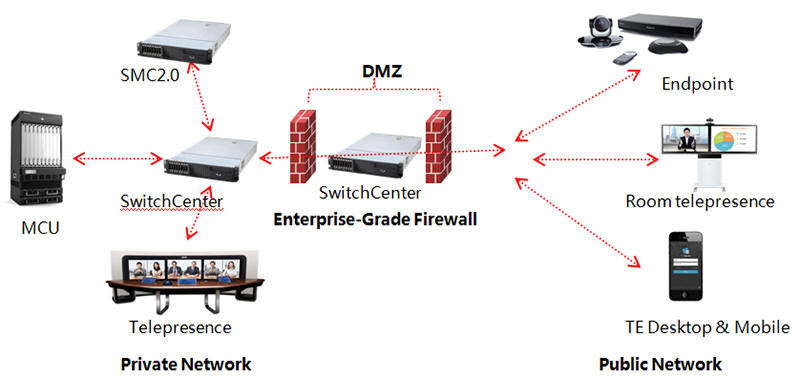

Deployment Scenario

SwithCenter Call Control and Firewall Traversal Server



Product Specification

Protocols and Standards Compliance
Communication Standards ITU-T H.323, and IETF SIP
Other Standards and Protocols H.225, H.245, Q.931, H.235, SDP, TLS/SRTP, H.239, BFCP H.460, ICE, STUN, TURN, SNP (Huawei Patented), SIP TRUNK TCP/IP, HTTP, HTTPS, SSH, SNMP, LDAP/H350, RTP, RTCP, and DDNS
Functions and Features
Call Control and Addressing
•H.323 gatekeeper/SIP server/SIP proxy support
•Support for node registration, call control, bandwidth management, status display, call management, routing management, zone management, and number conversion
•H.235/TLS/SRTP encryption and system logs
•Support for SiteCall and endpoint-initiated multi-point conferencing
•Support for SIP trunk addressing
•Support for URI dialing and addressing, using format such as [email protected], [email protected], or ‘IP##number’
Firewall Traversal
•H.460 18/19-compliant (H.323)
•Firewall ICE/STUN/TURN-compliant (SIP)
•Huawei patented SNP traversal-compliant
•Support for video firewall traversal of dual network interfaces
Security
•HTTPS and SSH log management
•Whitelist/blacklist authentication
•Support for LDAP authentication
H.235/TLS/SRTP encryption
Directory Support for CDR text files
Maintenance and Management Unified management through SMC2.0 web command line interface
System Backup 1+1 redundancy hot spare (VRRP-based)
System Performance Server version Software
Max. Registrations 6,000 6,000
Concurrent Calls 4,000 (1,000 routing calls) 4,000 (120 routing calls)
Max. SIP Concurrent Calls 1,000 1,000
Traversal Throughput 300 Mbit/s 120 Mbit/s
Physical Dimensions of Server
(H x W x D) mm) 87.3 mm x 447 mm x 760 mm; supports 19-inch rack-mount chassis
Weight (kg) 24.0 kg
Interfaces
Six GE Ports (RJ-45) with TOE (TCP/IP Offload Engine) support
One 10M/100M Ethernet port (RJ-45)
One DB9 console port
One DB15 VGA port
Power

Input Voltage:100V to 120V AC or 200V to 240V AC

Two hot-pluggable 460W power supplies for 1+1 backup

Environmental Data

Operating temperatures: 10℃ to 35℃

Storage temperatures: -40℃to 65℃

Temperature fluctuation: < 20℃/h

Relative Humidity

Operating humidity: 8% RH to 85% RH (non-condensing)

Storage humidity: 5% RH to 95% RH (non-condensing)

Humidity fluctuation: < 20% RH/h

Atmospheric Pressure

≤ 3,000m

(Operating temperature reduces by 1℃ for every 300m above 900m)

Lowest configuration requirement of Software
Server configuration 4-core CPU (basic frequency ≥ 2.2 GHz), 8G memory, 300G hardware, single/dual 1,000M network interface card, VMware deployment
Operating Systems

Suse 11 Enterprise SP1

RedHat Enterprise 6.5



SC Call Control and Firewall Traversal Server

HUAWEI SwitchCenter is a call-control and firewall traversal server that enables seamless video communication between internal and external networks, headquarters and branches, as well as different enterprises. This server employs H.323 and SIP protocols, supporting a maximum of 6,000 registered points and providing powerful traffic traversal capabilities of up to 300 Mbit/s.

  •
