Huawei DP300 Desktop Presence

DP300 is a high-end, High-Definition (HD) videoconferencing desktop endpoint. The system comes fully-integrated with an impressive HD (1080p60) digital camera, High Fidelity (Hi-Fi) speakers, HD microphone, and 27-inch touch screen. The fashionable, sleek design provides you with an unprecedented audiovisual experience.

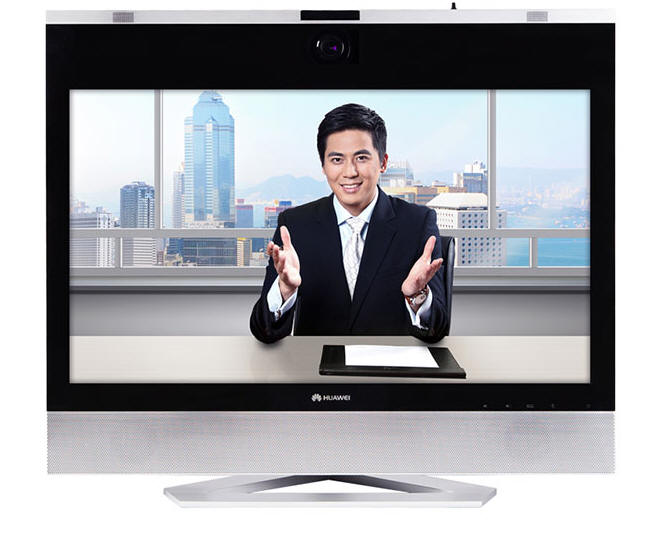

DP300 Desktop presence

Product Features

    • Dual 1080p60, 27-inch touch screen, can be used as VC endpoint/PC display
    • Voice dialing, 20% of packet loss tolerated, 1080p30 @ 512 kbit/s
    • Embedded universal transcoding MCU, 4V (720p) +3A
    • Wi-Fi access, Bluetooth, and document camera supported



Product Characteristics



Elegance combined with robust features

  • Stylish model includes powerful devices: HD camera, microphone, speakers, and trend-setting wide touch screen
  • Simple setup: One power cable easily enables immediate face-to-face video collaboration
  • Multiple capabilities: Use the large screen as an office computer monitor or transform the display into a telepresence system with the tap of a button
  • Content display options: Use a projector or a large screen for multiple-party conferences
  • Views to suit your every need: The reflecting camera mirrors local documents or shares them with remote sites; multiple picture layouts change the point of view to full screen, picture-in-picture, and picture-outside-picture

Innovative technologies showcase HD experience

  • Screen resolutions up to dual 1080p60 for a completely immersive presentation
  • Combines VME2.0 and H.264 HP; bandwidth usage reduced by 50 percent
  • Intelligent face detection and video enhancement technologies provide outstanding visual communication
  • Hi-Fi audio provides Advanced Audio Coding-Low Delay (AAC-LD), Acoustic Echo Cancellation (AEC), and Acoustic Noise Suppression (ANS)

Perform advanced functions easily and efficiently

  • Voice dialing: DP300 recognizes multiple languages. You can call or join a conference simply by saying the conference or site name
  • Wi-Fi Access: Built-in Wi-Fi enables DP300 to support wireless network and microphone.
  • Air content sharing: Users quickly share data as presentations or content over either wireless or IP networks without a VGA cable
  • Live content: More than one site can simultaneously share full HD content, and any site can view any content as needed
  • Easy navigation controls: Touch screen or remote control mode with a user-friendly interface design enables simple conference initiation and control of other operations by pushing just a single button
  • Various audio access methods: Connect via Bluetooth headset, wired headset, external microphone, and speaker to clearly hear participants

Outstanding network adaptability and security mechanisms

  • Patented Super Error Concealment (SEC) ensures high-quality video experiences even with packet loss at 20%
  • Supports H.264 SVC, adaptable to different bandwidths, device capabilities, and network requirements
  • Standard H.460 and proprietary SNP technology guarantee secure firewall traversal
  • H.235 media stream and signaling encryption for SRTP, TLS, and HTTPS

Extensive system integration

  • Interoperable with standard endpoints and infrastructures
  • Integrates with Microsoft Lync2010TM/Lync2013TM and OCS2007R2
  • Seamless integration with IMS open standards

Embedded MCU (optional)

  • Maximum capacity: 4-way 720p30 video sites + 3-way VoIP sites
  • Maximum bandwidth: 4 Mbit/s, 1 Mbit/s per video site
  • Universal transcoding: Hybrid HD/SD/VoIP endpoint access; H.323 and SIP endpoints regardless of different protocols and bandwidths
  • Auto CP on each port, voice activation, chairman token, broadcast a site, H.239 and BFCP
  • Multipoint conference recording and streaming is enabled with Huawei RSE6500



Product Specification

Components
Standard Components Built-in microphone and speakers, HD camera, codec, 27-inch touch screen, remote control, and power
Optional Components

Hardware: VPM220/VPM220W,

Software: License supports 1080p60 and embedded MCU

Standards & Protocols
Standards and Protocols ITU-T H.323, IETF SIP
Video Standards & Protocols  H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV
Audio Standards & Protocols G.711, G.722, G.722.1*, G.722.1C*, G.728, G.719, G.729A, AAC-LD,  and HWA-LD
Dual Stream ITU-T H.239, BFCP
Other Standards H.225, H.235, H.241, H.243, H.245, H.350, H.460, T.140, DTMF, H.281, and H.224
Network  Standards & Protocols TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS with SSL/TLS,  PPPoE, RTP, RTCP, SNTP, ARP, 802.1X, 802.1P, and 802.1Q
Video Specifications and Features
People Video Resolution

1080p60 from 1 Mbit/s (Optional)

1080p30 from 512 kbit/s

720p50/60 from 512 kbit/s

720p25/30 from 384 kbit/s

4SIF/4CIF from 128 kbit/s

SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 kbit/s

Content Video Resolution

Input: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) 56/60/72/75/85 @ fps, XGA (1,024 x 768) @ 60/70/75/85 fps, 1,152 x 864 @ 60/75/85 fps, 1,280 x 600 @ 60 fps, WXGA (1,280 x 768) @ 60/75/85 fps, WXGA (1,280 x 800) @ 60/75/85 fps, 1,280 x 960 @ 60/75/85 fps, SXGA (1,280 x 1,024) @ 60/75/85 fps, 1,360 x 768 @ 60 fps, 1,366 x 768 @ 60 fps, 1,440 x 900 @ 60 fps, XGA+ (1,400 x 1,050) @ 60 fps, 720p @ 60/75/85 fps, 1080p @ 60 fps, 1,600 x 900 @ 60 fps, 1,600 x 1,200 @ 60 fps, 1,680 x 1,050 @ 60 fps, 1,920 x 1,200 @ 60 fps

Coding/Decoding resolution: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080, 1,600 x 1,200, 1,920 x 1,200

Output: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080, 1,600 x 1,200, 1,920 x 1,200

Dual Stream

Dual 1080p60 (Optional);

Dual 1080p30;  Dual 720p30

Other Video Features

Intelligent Face Detection

Picture-in-Picture

Picture-outside-Picture

Video Motion Enhancement (VME)

Video Intensifier

View Processing

Audio Specifications and Features
Audio Features

Dual-channel AAC-LD Stereo

HWA-LD Stereo: Huawei Audio Broadband Low-delay Stereo

Acoustic Echo Cancellation (AEC)

Acoustic Noise Suppression (ANS) 12 dB

Automatic Gain Control (AGC) ±6 dB

Voice Clear, Audio Enhancer

Lip synchronization

Built-in Camera and Display
1080p HD Camera

Video output pixels: 1080p50/60

Zoom: 3x optical

Maximum horizontal angle: 80°horizontal field of view

Supports Document camera mode

Display

Size: 27-inch Touch Screen

Resolution: 1,920 x 1,080 @ 60 Hz

Used as PC monitor as well

Security and Stability
Network

Dual-stack IPv6 and IPv4

IP Precedence, Diffserv

Uniform Resource Identifier (URI) dialing

Super Error Concealment (SEC), Intelligent Rate Control (IRC)

Automatic Repeat reQuest (ARQ), Forward Error Correction (FEC), and PLC

Security

H.235 signaling and media stream encryption

AES media stream encryption, dual-stream encryption

TLS and SRTP for SIP signaling and media stream encryption

Conference access password, conference control password

Administrator password, SSH/HTTPS

Firewall Traversal H.460.18, H.460.19 firewall traversal, Static NAT, and SNP
Bandwidth
IP 64 Kbit/s to 8 Mbit/s
Interfaces
Audio Inputs 1 x HDMI,  1 x HD-AI (Mic Array/Audio external), 2 mm x 3.5 mm
Audio Outputs 2 mm x 3.5 mm
Video Inputs 1 x DVI-I, 1 x HDMI
Video Outputs 1 x DVI-I
USB Interfaces 1 x USB 2.0
Other Interfaces

2 x 10/100/1,000M LAN

1 x built-in Wi-Fi

1 x built-in Bluetooth

COM Interfaces 1 x RS232 COM
Application Features
Languages Simplified Chinese, Traditional Chinese, English, Japanese, Russian, French, Spanish, Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian, Czech, Turkish, Greek, Thai, Dutch, Malay, and Indonesian

Special Features

Voice dialing in English and Chinese

USB auto data configuration

Wireless Wi-Fi access

Air content sharing

Wireless Mic VPM220W array

Multi-view: 2-view

Integration with Microsoft Lync2010TM / Lync2013TM  and OCS2007R2

Hybrid with IMS network

Lock Site/Conference

SiteCall (HD dual-stream)

Web-based conference management

Web-based image monitoring and HD picture snapshot

16:9 and 4:3 mixed display

LDAP/Network address book

API for integration

Maintenance Management
Maintenance Methods

Remote control: 3D Effects & GUI Animation

Endpoints Network Management: SNMP

Embedded Web server, GUI interface

Command line mode: Telnet/SSH

Maintenance Functions

Endpoint IP and number are displayed on the front panel

Auto sleep, wake-up by remote control or remote module

Event log record, query, and display, and export query results

IP network test, default settings restoration

Local and remote loopback

Test signals providing sound test and standard test stripes

Physical Characteristics
Dimensions

Device dimensions (L x W x H): 653.5 mm x 218 mm x 565.3 mm

Package dimensions (L x W x H): 795 mm x 295 mm x 780 mm

Net weight: 18.3 kg

Package weight: 26.8 kg

Electrical

Working voltage: 100V AC to 240V AC

Working frequency: 50 Hz  to  60 Hz

Power consumption: 120W

Environmental

Specifications

Operating temperature: 0ºC to 40ºC

Operating humidity: 10% to 80%

Non-operating temperature: -40ºC to 85ºC

Non-operating humidity (non-condensing): 0% to 95%

Peripheral noise: < 46 dBA SPL

Lowest luminance: 7 lux

Recommended luminance: > 300 lux
