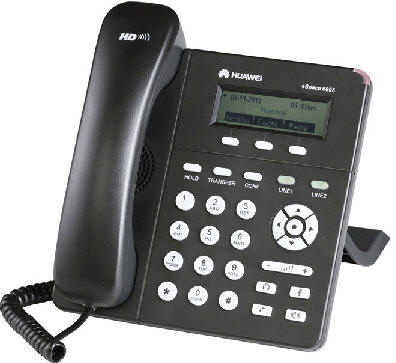

Huawei eSpace 6805 IP phone

Huawei IP Phone eSpace 6805 is a two-line, user-friendly SIP phone with a rich array of functions. It is equipped with a 3-line LCD screen and three softkeys, delivering an easy user experience. eSpace 6805 supports HD wide band audio for exceptional voice quality. The support for automatic deployment greatly simplifies the installation and use of this phone. Security technologies employed, such as signaling encryption, media encryption, and HTTPS-based web management system, help safeguard users' communication.

eSpace6805 Ip Phone

Product Hightlights

Product Specification

Category Item Parameter
Standard Audio format standard G.711a/G.711μ/G.729AB/G.722/iLBC/G.723.1/G.726
Network protocol SIP, TCP/IP, SDP, UDP, RTP, RTCP, DHCP, DNS, PPPoE, HTTP, HTTPS, SNTP
Audio ACLP(Anti-clipping)
AEC(Acoustic Echo Cancellation)
AGC(Automatic Gain Control)
AJB(Adaptive Jitter Buffer)
ANR(Automatic Noise Reduction)
CNG(Comfort Noise Generation)
HAC(Hearing Aid Compatibility)
PLC(Packet Loss Concealment)
VAD(Voice Activity Detection)
Side Tone Cancellation
LCD Resolution: 128 x 40 pixels
Menu languages: Chinese Simplified, Chinese Traditional, Arabic, Czech, Dutch, English, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Lithuanian(Croatia), Polish, Portuguese, Russian, Slovenian, Spanish, Turkish, support additonal language packs.
External port Ethernet ports 2 ports, 10/100 Mbps
Earphone ports RJ-9
Function key Call transfer key, Three way conference key, hands-free key, Headset key, mute key, Call holding key, Sending key, Volume adjustment key,5 navigation keys, 2 LINE keys, and 3 function softkeys
Call feature Call holding, call transfer, call waiting, DND, call forwarding, call muting, redial, call record, volume adjustment, hotline service, and automatic response.
Function Phone book Stores records of up to 200 contacts, and allows users to manually enter contact information or import contact information from an XML file that is downloaded from the file server
History call records Records the numbers of history calls, consisting of up to 200200 received call numbers, 200200 missed call numbers, 200200 dialed numbers, and 200200 forwarded call numbers
Ring tone setting Allows users to customize ring tones and set a ring tone for a specified number
Message waiting indicator (MWI) Provides MWI that blinks for new voice messages
Electrical feature Power supply adapter Input: AC 100V–240 V 50/60 Hz
Output: DC 5 V/0.8A
The specifications of the adapter meet the requirements of the following countries: Europe,China, UK and USA.
Power consumption 2.3 W
Environment requirement Working temperature 0°C–45°C
Storage temperature –20°C– +70°C
Working humidity 10%–90%
Storage humidity 10%–90%
Authentication FCC/CE /ROHS
Physical feature Dimensions (H x W x D) 82 mm x 186 mm x 210 mm
Weight 0.72kg
Desk/Wall Placed on a desk or hung on a wall



eSpace 6805 IP phone

VoIP calls with crystal-clear voice quality are yours with Huawei’s eSpace 6805 IP Phone. This function-rich, 2-line IP phone provides high-speed network access for basic IP telephony applications.
Its LCD display makes it easy to use. Other features include Power over Ethernet (PoE), and signaling and media encryption for service security.
