Huawei SNS2124/2224/2248

Click Here For Latest Huawei Storage Network Switch

Huawei OceanStor SNS2124, 2224, and 2248 are Fiber Channel (FC) switches designed for small-scale independent SANs and edge topologies of large-scale core switching networks.

Unblocked architecture is used, allowing high bandwidth for SNS switches to run at a rate in full configuration (full duplex). The SNS2248 supports a maximum of 1,536 Gbit/s without bandwidth congestion.

The OceanStor SNS2124, 2224, and 2248 are designed to reduce enterprises’ SAN costs while improving SAN scalability and ease of use.

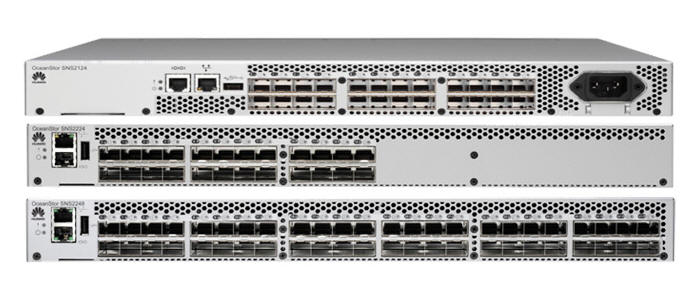

SNS2124 2224 2248 fiber channel switch

Product Features

  • ISL link aggregation: Frame-based link aggregation combines multiple ISL links into one logical link for efficient bandwidth use and load balancing
  • Port automatic-sensing: The SNS2124 automatically adapts from 1 Gbit/s to 8 Gbit/s. The SNS2224 and SNS2248 automatically adapt from 2 Gbit/s to 16 Gbit/s.
  • Provide SFP backward compatibility with on-demand investment availability

Product Specification

Specifications

SNS2124

SNS2224

SNS2248

Number of Ports

A maximum of 24 ports, where 8, 16, and 24 general-purpose ports can be configured in increments of 8

A maximum of 24 ports, where 12 and 24 general-purpose ports can be configured in increments of 12

A maximum of 48 ports, where 24, 36, and 48 general-purpose ports can be configured in increments of 12

Port Types

FL_Port, F_Port, M_Port, E_Port, U_Port, and N_Port

D_Port, E_Port, F_Port, M_Port, and U_Port

D_Port, E_Port, EX_Port, F_Port, M_Port, and U_Port

Port Rate

1, 2, 4, 8 Gbit/s

2, 4, 8, 16 Gbit/s

Maximum Latency

Local switching port: 700 ns

Total Bandwidth

192 Gbit/s: 24 ports x 8 Gbit/s

Or 384 Gbit/s: 24 ports x 8 Gbit/s x 2 (full duplex)

384 Gbit/s: 24 ports x 16 Gbit/s

Or 768 Gbit/s: 24 ports x 16 Gbit/s x 2 (full duplex)

768 Gbit/s: 48 ports x 16 Gbit/s

Or 1536 Gbit/s: 48 ports x 16 Gbit/s x 2 (full duplex)

Media Type

SFP, SFP+, LC connector, SWL, LWL, and ELWL

SFP+, LC connector, SWL, LWL, and ELWL

Maximum Frame Size

2,112 byte payload

Frame Buffer

700 frames dynamically assigned; a maximum of 484 frames per port

8,192 frames dynamically assigned

Scalability

Full fabric architecture with a maximum of 239 switches
